Place of Origin:
Jiangsu, China
Brand Name:
Giant Precision
Certification:
ISO9001
Model Number:
RV - C with flanged

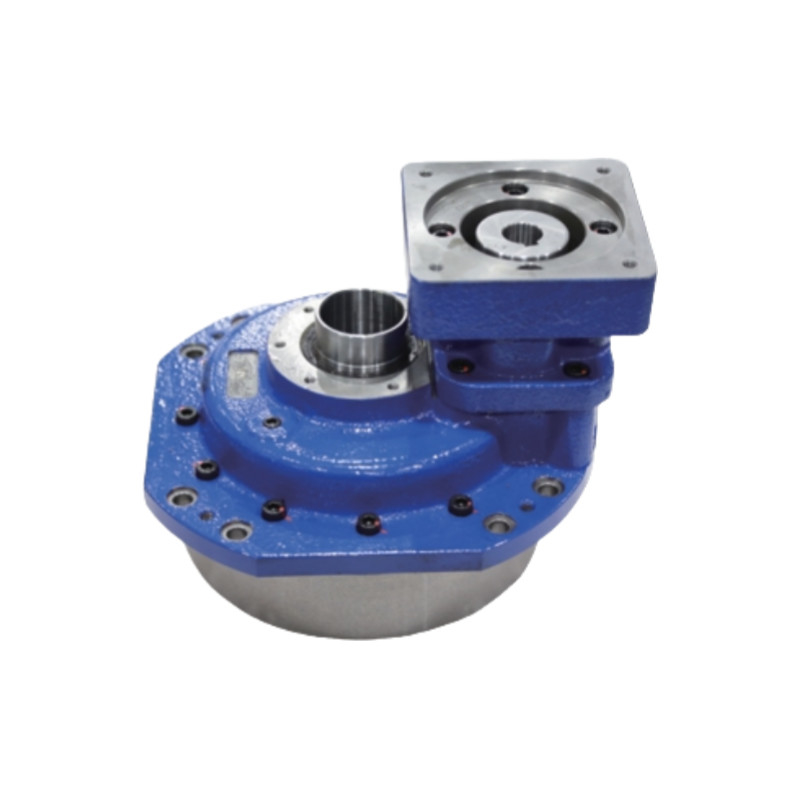

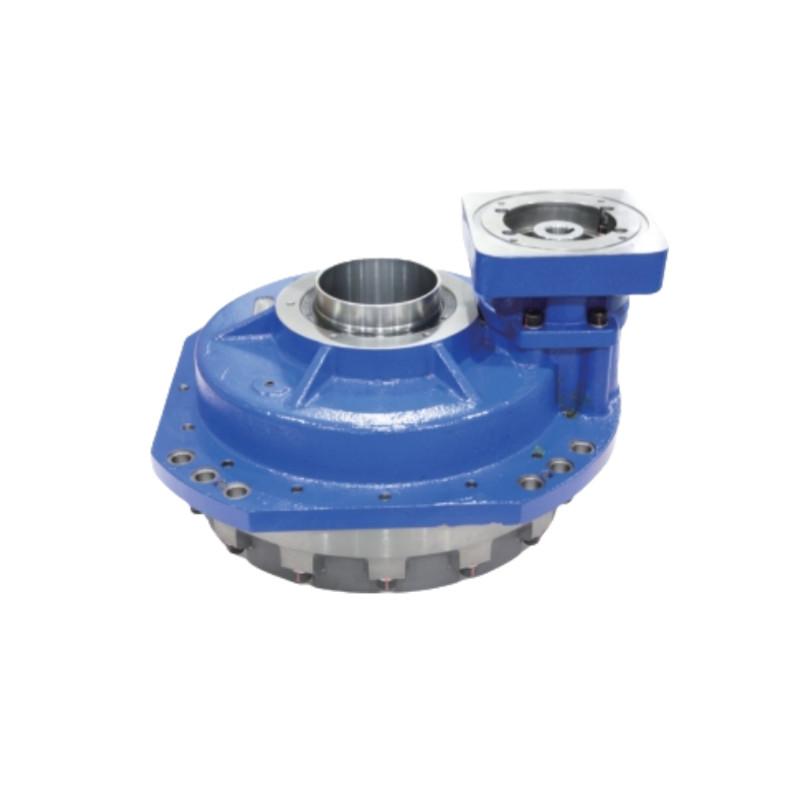

RV - C with flanged series gearboxes belong to advanced hollow shaft precision reduction gearhead model.
The design of RV integrated machines aims to improve production efficiency, reduce costs, and minimize the need for human resources, making them widely applied in industrial automation and manufacturing sectors.
Key Features
Specifications
Parameters table of RV - C with Flanged series
| Model | Reduction ratio | Reduction Gearbox | ||||||||||||
| Rated torque | Rated output speed | Design life | Allowable acceleration/ deceleration torque |
Momentary max. allowable torque |
Allowable input speed | Allowable output speed | output speed reference value(the rated torque continuously runs) | Backlash | Lost motion | Torsional rigidity (reference value) |
Start efficiency | Allowable torque | ||
| (Nm) | (rpm) | (h) | (Nm) | (Nm) | (rpm) | (rpm) | (rpm) | (arc.min.) | (arc.min.) | (Nm/arc.min.) | (%) | (Nm) | ||
| BX27C | 104.43 | 265 | 15 | 662 | 1323 | 3500 | 33 | 33 | 147 | 70 | 980 | |||
| BX50C | 82.84 | 490 | 15 | 1225 | 2450 | 3000 | 36 | 30 | 255 | 70 | 1764 | |||
| 152.6 | 20 | 20 | ||||||||||||
| BX120C | 118.97 | 980 | 15 | 2450 | 4900 | 3000 | 25 | 20 | 510 | 80 | 2450 | |||
| BX200C | 194.22 | 1961 | 15 | 4900 | 9800 | 3000 | 30 | 10 | 980 | 80 | 8820 | |||
| 320C | 253 | 3136 | 15 | 7840 | 15680 | 2000 | 8 | 8 | 1960 | 80 | 20580 | |||
| Key Attributes of RV - C with Flanged Series | |||
| Product | RV - C with Flanged Reduction Gearhead | ||
|
Material
|
Steel, Aluminum | ||
|
Rated torque
|
265 to 3136 Nm | ||
| Rated output speed | 15 r/min | ||
|
Backlash
|
MAX. 1 Arc.min. |
||
| Allowable acceleration/ deceleration torque | 662 to 7840 Nm | ||
|
Lost motion
|
MAX. 1 Arc.min. | ||
|
Model
|
BX50C, BX120C, BX200C, BX320C |
||
| Color | Sliver | ||
| Start efficiency | 80% | ||
| Design life | 6000 hours | ||
| Warranty | 1 year | ||
