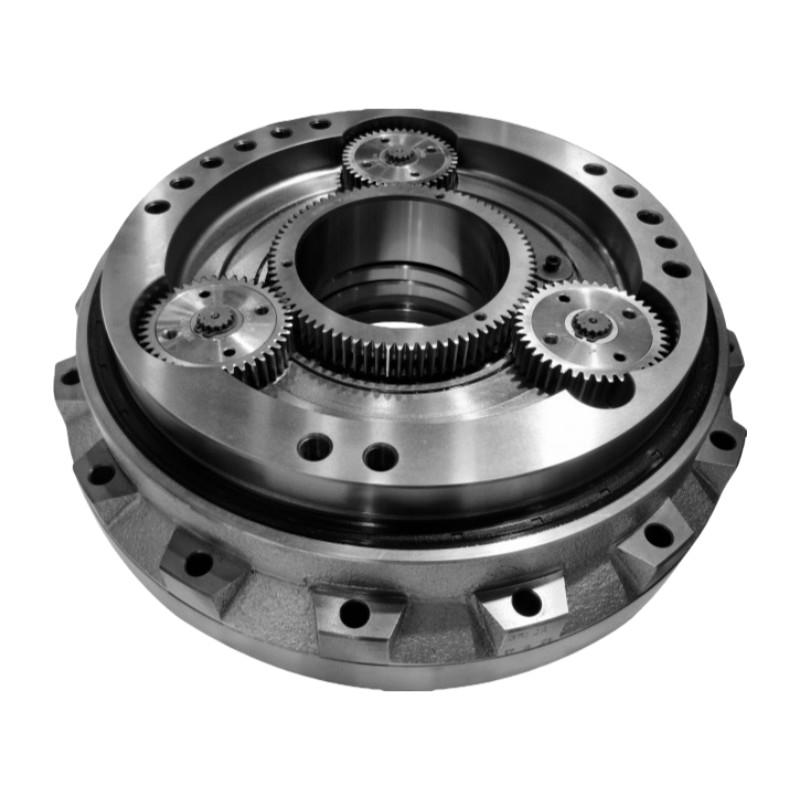

Automated Zero Backlash Cycloidal Gearbox RV Robot Reducer

Automated zero backlash cycloidal gearbox

zero backlash cycloidal gearbox RV Reducer

Zero Backlash robot reducer

Place of Origin:

Jiangsu, China

Brand Name:

Giant Precision

Certification:

ISO9001

Model Number:

RV - C

Request A Quote

Automated Zero Backlash Cycloidal Gearbox RV Robot Reducer

Product Details

Product:

Hollow Shaft C Series RV Reducer

Material:

Steel, Aluminum

Torsional Rigidity:

421 To 24500 Nm/arc.min.

Lost Motion:

MAX. 1 Arc.min.

Output Speed:

5 To 60 R/min

Momentary Max. Allowable Torque:

1372 To 78400 Nm

Max Allowable Output Rotation Speed:

80 R/min

Model:

BX10C, BX27C, BX50C, BX100C BX120C, BX200C, BX320C, BX500C

Weight:

4.6 To 154 Kg

Operation:

Rotation，Engagement，Reduction

Warranty:

1 Year

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

To Be Negotiated

Packaging Details

Carton Box

Delivery Time

3-4 Weeks

Payment Terms

T/T

Supply Ability

20000 Sets per Month

Compact Robotic Gear RV Speed Reducer Minimal Backlash

Get Best Price

RV-C Flanged Robot Speed Reducer Gearhead Hollow Shaft

Get Best Price

Flanged Reduction Harmonic Gearhead RV Gear Reducer Solid Series

Get Best Price

RV-E Flanged Planetary Wheel Drive Reduction Gearbox Low Backlash

Get Best Price

Contact Now

Product Description

RV reducer

commonly known as an RV gear, is a type of precision gearbox designed for applications requiring high torque capacity, precision, and durability. It is widely used in robotics, machine tools, and automated manufacturing systems due to its robust construction and minimal backlash.

	Specification	Output Torque kgf-m(Nm)
	10	10(98)
	27	27(265)
	50	50(490)
	100	100(980)
	120	120(1176)
	200	200(1961)
	320	320(3136)
	400	400(3920)
	500	500(4900)

Parameters table of RV - C series

Model	Torsional Rigidity Nm/arc.min.	Dimension(mm)		Allowable bending torque (Nm)	Allowable thrust load (N)	Torsional stiffness	Backlash/Lost motion
Model	Torsional Rigidity Nm/arc.min.	a	b	Allowable bending torque (Nm)	Allowable thrust load (N)	Nm/arc.min.	arc.min	Determining rotational speed (Nm)
BX10C	421	28	119.2	686	5880	47	MAX1	±2.94
BX27C	1068	38.2	150.3	980	8820	147		±7.94
BX50C	1960	50.4	187.1	1764	11760	255		±14.7
BX100C	2813	58.7	207.6	2450	13720	510		±29.4
BX120C	2813	58.7	207.6	2450	13720	510		±29.4
BX200C	9800	76	280.4	8820	19600	980		±58.8
BX320C	12740	114.5	360.5	20580	29400	1960		±94.1
BX500C	24500	125	413.4	34300	39200	3430		±147.0

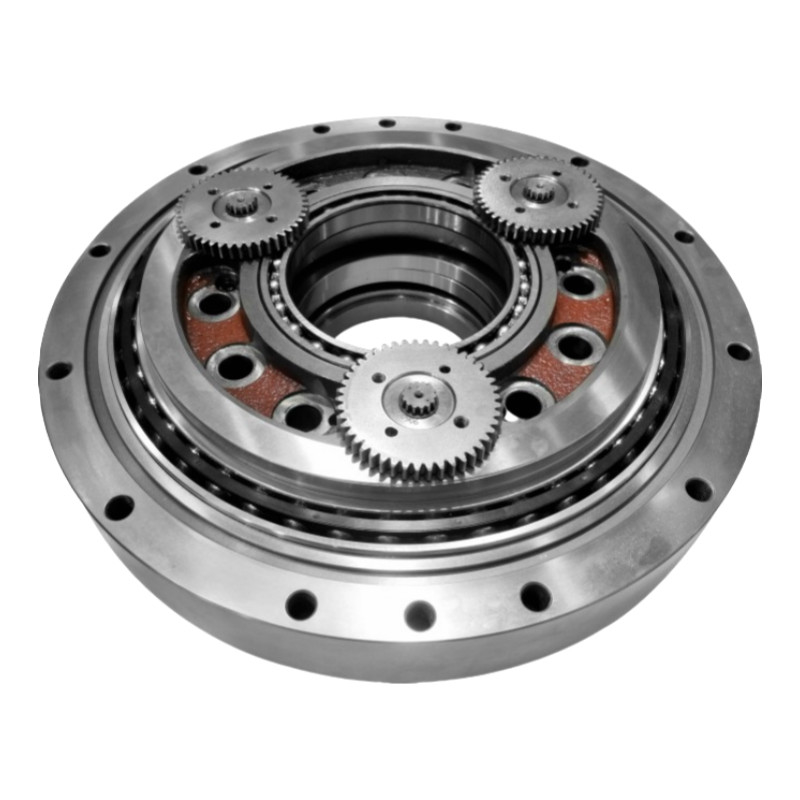

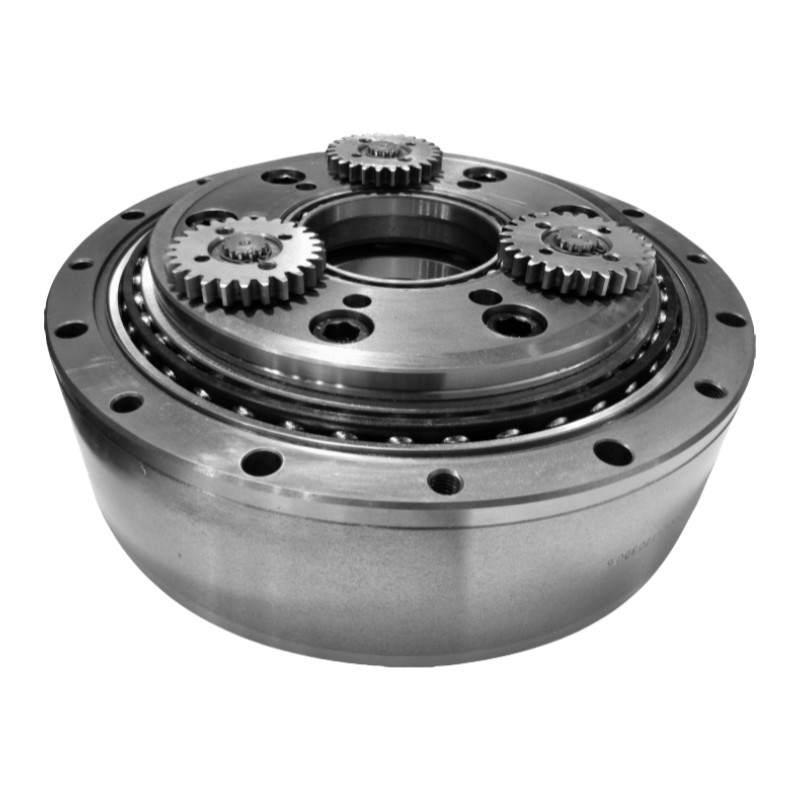

Detailed Images

Key Attributes of RV - C Series Hollow Shaft RV Reducer
Product	Hollow Shaft RV Reducer
Material	Steel, Aluminum
Torsional Rigidity	421 to 24500 Nm/arc.min.
Output speed (r/min)	5 to 60
Backlash	MAX. 1 Arc.min.
Momentary max. allowable torque	1372 to 78400 Nm
Max allowable output rotation speed	80 r/min
Model	BX10C, BX27C, BX50C, BX100, BX120C, BX200C, BX320C, BX500C
Weight	4.6 to 154kg
Warranty	1 year

Application

Multi Tasking Machine Tool
Stacker Crane
Double-column Machining Centers
Trunnion Table
