Cycloidal Pin Wheel Robot Speed RV Reducer Gearbox Aluminum Steel

Cycloidal Pin Wheel Robot Speed RV Reducer Gearbox Aluminum Steel

Cycloidal rv reducer gearbox

Aluminum Steel rv reducer gearbox

Cycloidal robot speed reducer

Place of Origin:

Jiangsu, China

Brand Name:

Giant Precision

Certification:

ISO9001

Model Number:

RV - E

Contact Us
Request A Quote
Product Details
Product:
Solid Shaft E Series RV Reducer
Material:
Steel, Aluminum
Torsional Rigidity:
372 To 7448 Nm/arc.min.
Rated Torque:
167 To 4410 Nm
Output Torque:
17 To 450 Nm
Lost Motion:
MAX. 1 Arc.min.
Rated Output Speed:
15 R/min
Model:
BX20E, BX40E, BX80E, BX110E, BX160E, BX320E, BX320E3, BX450E
Weight:
4.7 To 66.4 Kg
Color:
Sliver
Design Life:
6000 Hours
Warranty:
1 Year
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
To Be Negotiated
Packaging Details
Carton Box
Delivery Time
3-4 Weeks
Payment Terms
T/T
Supply Ability
20000 Sets per Month
Product Description

Solid Shaft Good Rigidity And Strong Impact Resistance E Series RV Reducer


The RV reducer is composed of a cycloidal pin wheel and a planetary support. It is widely used in industrial robots, machine tools, and medical applications due to its small size, strong impact resistance, large torque, high positioning accuracy, low vibration, and large reduction ratio. Detection equipment, satellite receiving system and other fields.

The RV reducer has good rigidity, strong impact resistance, smooth transmission, and high precision. It is suitable for medium and heavy load applications. However, the RV reducer needs to transmit a large torque, bear a large overload impact, and ensure the expected working life. In the design, a relatively complicated over-positioning structure is used, and the manufacturing process and cost control are difficult. The RV reducer has no elastically deformed force components inside, so it can withstand a certain torque. The bearing of the RV reducer is its weak link. It is easy to break through the bearing force limit and cause abnormal wear or breakage of the bearing. This problem is more prominent during high-speed operation, so the rated torque of the RV reducer decreases significantly with the input speed.

Key Features

  • Backlash less than 1 arc.min.
  • Lost motion less than 1 arc.min.
  • Internal main bearing

Specification

 Cycloidal Pin Wheel Robot Speed RV Reducer Gearbox Aluminum Steel 0 Specification Output Torque kgf-m(Nm)
20 17(167)
40 42(412)
80 80(784)
110 110(1078)
160 160(1568)
320 320(3136)
450 450(4410)

Parameters table of RV - E series

Model Torsional Rigidity Dimension(mm) Rated torque
(T0)
Rated output speed
(N0)
Torsional stiffness Lost motion Backlash Allowable bending torque
(Nm)
Allowable thrust load
(N)
Weight
(kg)
Nm/arc.min. a b Nm/arc.min. arc.min Determining rotational speed
(Nm)
Arc.min.
BX20E 372 20.1 113.3 167Nm 15 r/min 49 MAX1 ±5.00 MAX1 882 3920 4.7
BX40E 931 29.6 143.7 412Nm 108 ±12.3 1666 5194 9.3
BX80E 1176 33.4 166 784Nm 196 ±23.5 2156 7840 13.1
BX110E 1470 32.2 176.6 1078Nm 294 ±32.3 2940 10780 17.4
BX160E 2940 47.8 210.9 1568Nm 392 ±47.0 3920 14700 26.4

BX320E

BX320E3

4900 56.4 251.4 3136Nm 980 ±94.0 7056 19600 44.3
BX450E 7448 69 292.7 4410Nm 1176 ±132.0 8820 24500 66.4



Detailed Images

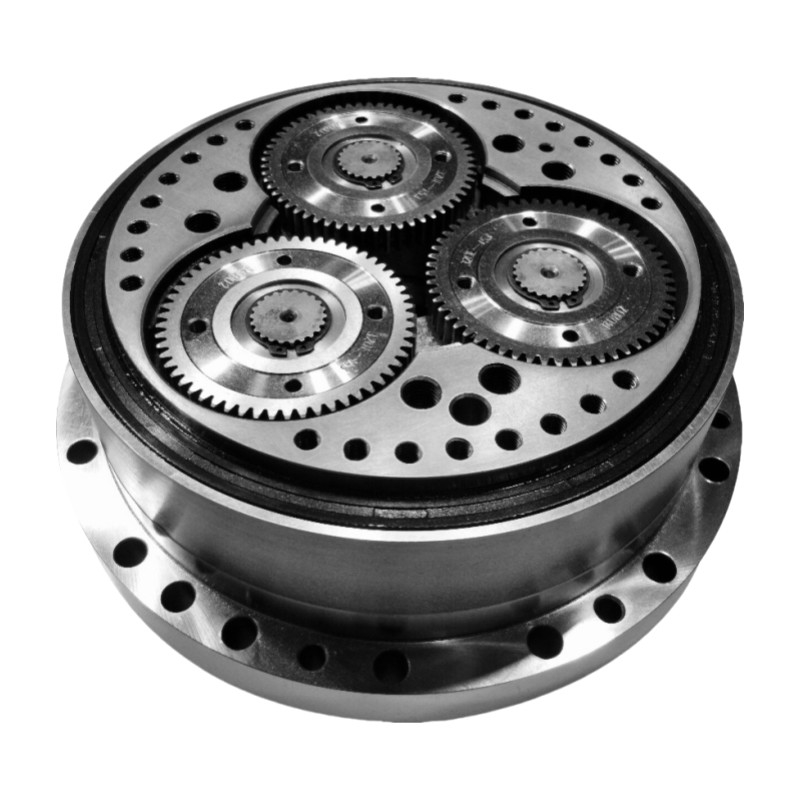

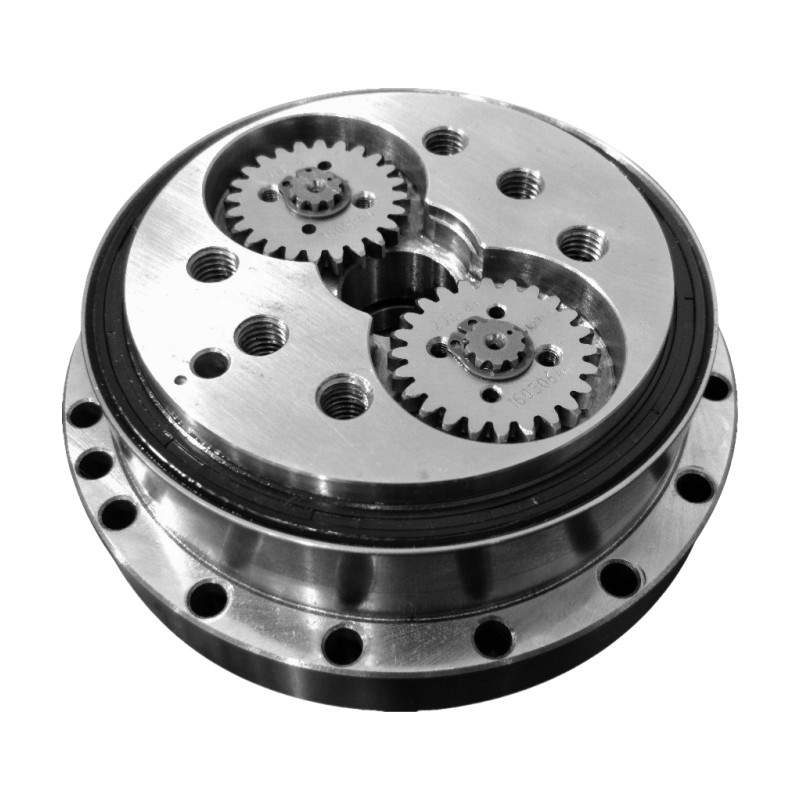

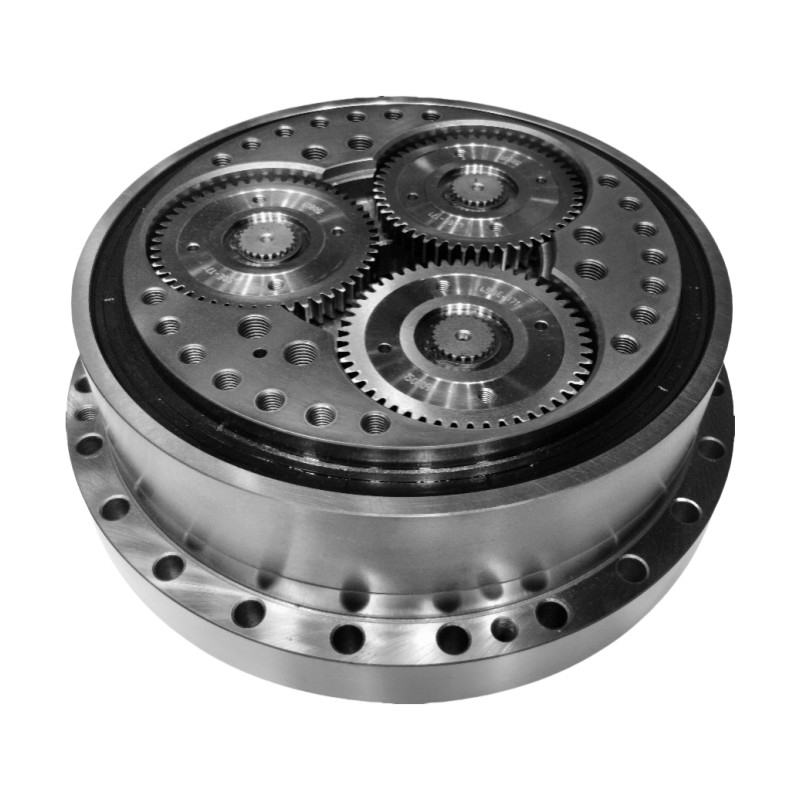

Cycloidal Pin Wheel Robot Speed RV Reducer Gearbox Aluminum Steel 1Cycloidal Pin Wheel Robot Speed RV Reducer Gearbox Aluminum Steel 2Cycloidal Pin Wheel Robot Speed RV Reducer Gearbox Aluminum Steel 3

Key Attributes of RV - E Series Solid Shaft RV Reducer
Product Solid Shaft RV Reducer
Material
Steel, Aluminum
Standard ratio 57 to 160
Output Torque 17 to 450 Nm
Torsional Rigidity
372 to 7448 Nm/arc.min.
Rated torque 167 to 4410 Nm
Backlash

MAX. 1 Arc.min.

Momentary max. allowable torque
833 to 22050 Nm
Rated output speed
15 r/min
Model

BX20E, BX40E, BX80E, BX110E, BX160E, BX320E, BX320E3, BX450E

Weight
4.7 to 66.4kg
Design life 6000 hours
Warranty 1 year

Application

  • Vertical Articulated Robot Shaft Drives
  • SCARA, Pick & Place
  • Machine Head Indexer

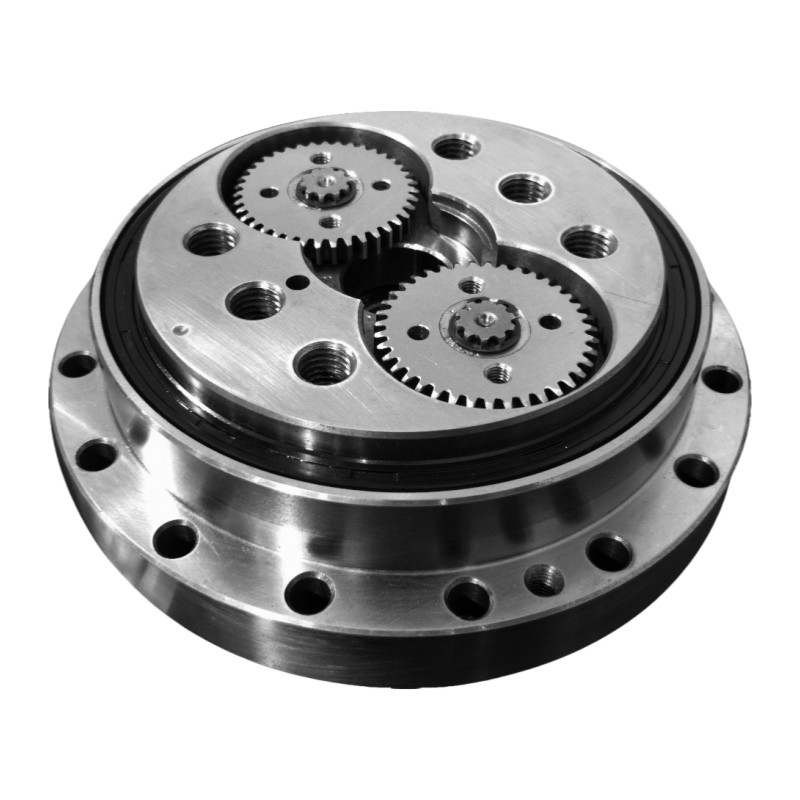

Cycloidal Pin Wheel Robot Speed RV Reducer Gearbox Aluminum Steel 4
