High Efficiency And Low Noise and Vibration RV - C Series RV Speed Reducer Gearbox For Robotics

RV reducer is a new transmission mechanism developed from traditional cycloid gearbox and planetary gearbox. It has the advantages of compact structure, large transmission, long service life, stable precision and high efficiency.

The rotary vector reducer is the core component of industrial robots, and the transmission efficiency is undoubtedly an important indicator of transmission performance. In addition, the assembly dimensional chain leads to clearance between parts, which can have a certain impact on the transmission efficiency.

Key Features

1. High Precision: RV reducers provide high precision and repeatability, making them suitable for applications that require precise motion control.
2. High Torque Capacity: Despite their compact size, RV reducers can handle high torque loads, making them suitable for demanding applications.
3. Low Noise and Vibration: They operate with low noise and vibration levels, ensuring smooth and quiet operation, which is essential in many applications, including robotics and automation.
4. High Efficiency: RV reducers typically have high efficiency, minimizing power losses during operation.
5. Maintenance-Free Operation: Due to their design, RV reducers often require minimal maintenance, reducing downtime and overall operating costs.
6. Wide Range of Sizes and Configurations: RV reducers are available in various sizes and configurations to suit different application requirements, from small-scale robotics to large industrial machinery.
7. Customizable Options: Some manufacturers offer customizable options for RV reducers, allowing users to tailor the design to specific application needs.

Specifications

	Specification	Output Torque kgf-m(Nm)
	10	10(98)
	27	27(265)
	50	50(490)
	100	100(980)
	120	120(1176)
	200	200(1961)
	320	320(3136)
	400	400(3920)
	500	500(4900)

Parameters table of RV - C series

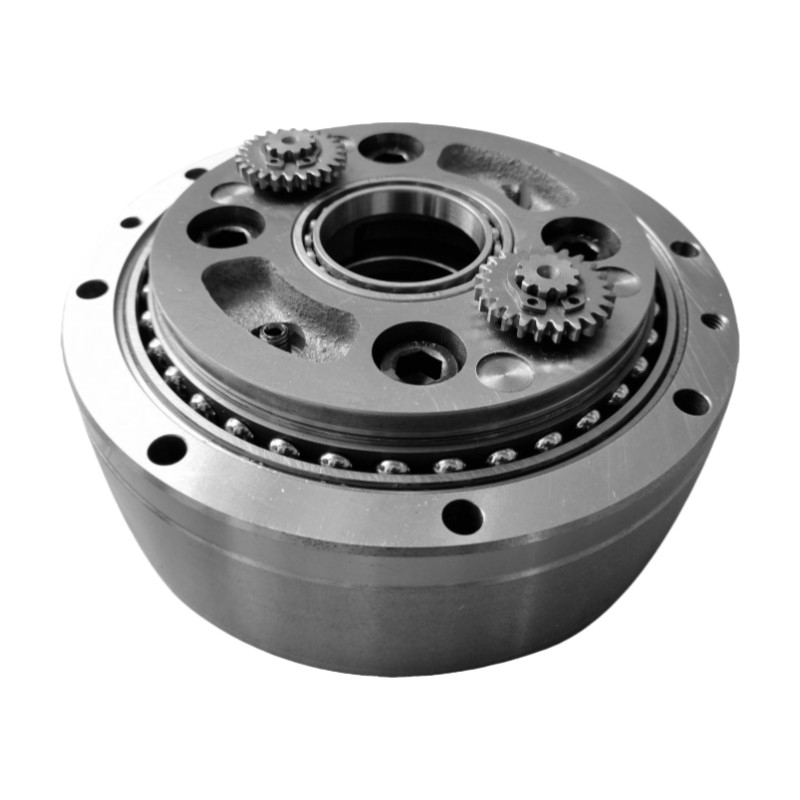

Detailed Images

Application

• Multi Tasking Machine Tool
• Stacker Crane
• Double-column Machining Centers
• Trunnion Table
