Low Backlash Cycloidal RV Speed Reducer Gearbox For Robot RV-C Series

Low Backlash RV Speed Reducer

Cycloidal RV Speed Reducer

Robot cycloidal gear reducer

Place of Origin:

Jiangsu, China

Brand Name:

Giant Precision

Certification:

ISO9001

Model Number:

RV - C

Request A Quote

Low Backlash Cycloidal RV Speed Reducer Gearbox For Robot RV-C Series

Product Details

Product:

Hollow Shaft C Series RV Reducer

Material:

Steel, Aluminum

Torsional Rigidity:

421 To 24500 Nm/arc.min.

Lost Motion:

MAX. 1 Arc.min.

Output Speed:

5 To 60 R/min

Momentary Max. Allowable Torque:

1372 To 78400 Nm

Max Allowable Output Rotation Speed:

80 R/min

Model:

BX10C, BX27C, BX50C, BX100C BX120C, BX200C, BX320C, BX500C

Weight:

4.6 To 154 Kg

Color:

Sliver

Warranty:

1 Year

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

To Be Negotiated

Packaging Details

Carton Box

Delivery Time

3-4 Weeks

Payment Terms

T/T

Supply Ability

20000 Sets per Month

Compact Robotic Gear RV Speed Reducer Minimal Backlash

Get Best Price

RV-C Flanged Robot Speed Reducer Gearhead Hollow Shaft

Get Best Price

Flanged Reduction Harmonic Gearhead RV Gear Reducer Solid Series

Get Best Price

RV-E Flanged Planetary Wheel Drive Reduction Gearbox Low Backlash

Get Best Price

Contact Now

Product Description

High Accuracy and Low Backlash RV - C Series RV Speed Reducer Gearbox For Robotics

Name: Low Backlash Cycloidal RV Speed Reducer Gearbox For Robot RV-C Series
Brand: Suzhou Giant Precision Industry Co., Ltd.
SKU: RV - C
Price: Negotiable USD
Availability: InStock

RV reducer is a high-precision control reducer with a cycloidal pin wheel reduction structure. RV reducer has higher fatigue strength, stiffness and service life. The repetitive positioning accuracy from a single direction is ±15 sec., while lost motion in a positioning operation from two directions is 2 arc minutes.

The RV reducer is used for the three joints of the leg, waist and elbow of the robot with a large torque, and the industrial robot with a large load uses RV for the first, second and third axes.

Key Features

High Precision: RV reducers provide high precision and repeatability, making them suitable for applications that require precise motion control.
High Torque Capacity: Despite their compact size, RV reducers can handle high torque loads, making them suitable for demanding applications.
Low Noise and Vibration: They operate with low noise and vibration levels, ensuring smooth and quiet operation, which is essential in many applications, including robotics and automation.
High Efficiency: RV reducers typically have high efficiency, minimizing power losses during operation.
Maintenance-Free Operation: Due to their design, RV reducers often require minimal maintenance, reducing downtime and overall operating costs.

Specifications

	Specification	Output Torque kgf-m(Nm)
	10	10(98)
	27	27(265)
	50	50(490)
	100	100(980)
	120	120(1176)
	200	200(1961)
	320	320(3136)
	400	400(3920)
	500	500(4900)

Parameters table of RV - C series

Model	Torsional Rigidity Nm/arc.min.	Dimension(mm)		Allowable bending torque (Nm)	Allowable thrust load (N)	Torsional stiffness	Backlash/Lost motion
Model	Torsional Rigidity Nm/arc.min.	a	b	Allowable bending torque (Nm)	Allowable thrust load (N)	Nm/arc.min.	arc.min	Determining rotational speed (Nm)
BX10C	421	28	119.2	686	5880	47	MAX1	±2.94
BX27C	1068	38.2	150.3	980	8820	147		±7.94
BX50C	1960	50.4	187.1	1764	11760	255		±14.7
BX100C	2813	58.7	207.6	2450	13720	510		±29.4
BX120C	2813	58.7	207.6	2450	13720	510		±29.4
BX200C	9800	76	280.4	8820	19600	980		±58.8
BX320C	12740	114.5	360.5	20580	29400	1960		±94.1
BX500C	24500	125	413.4	34300	39200	3430		±147.0

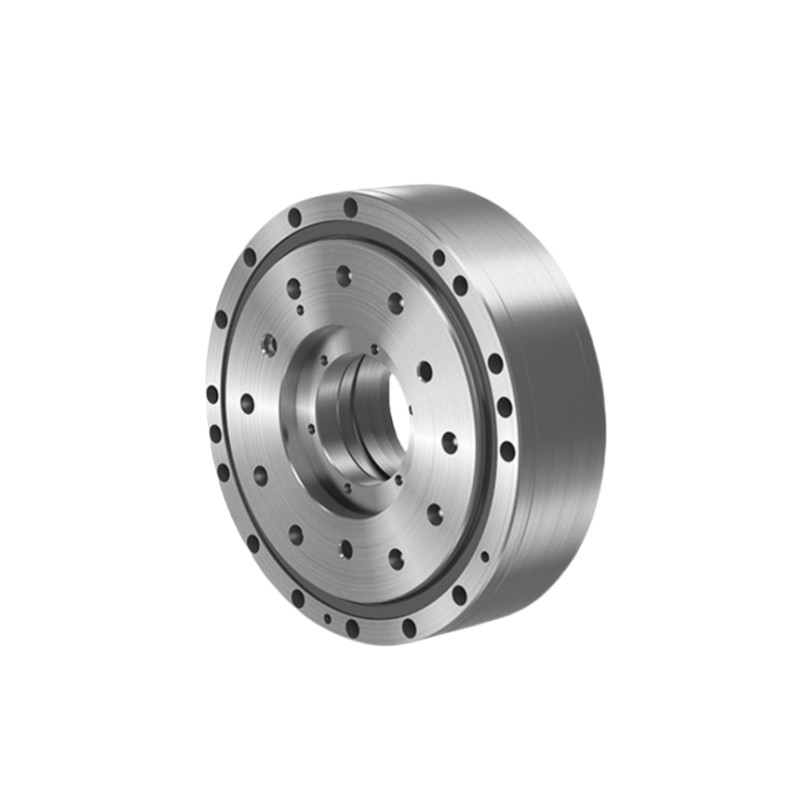

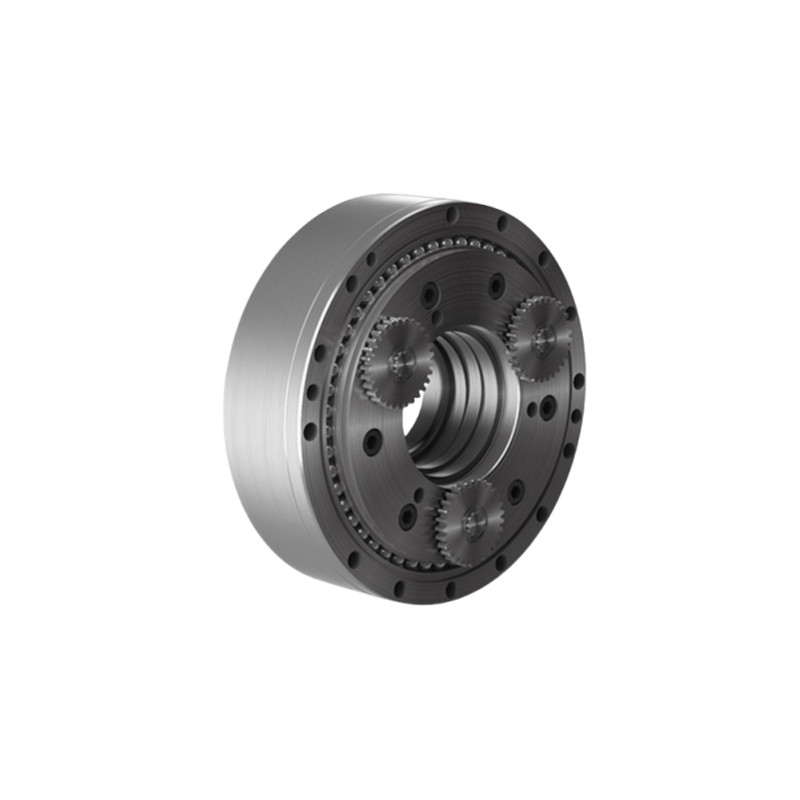

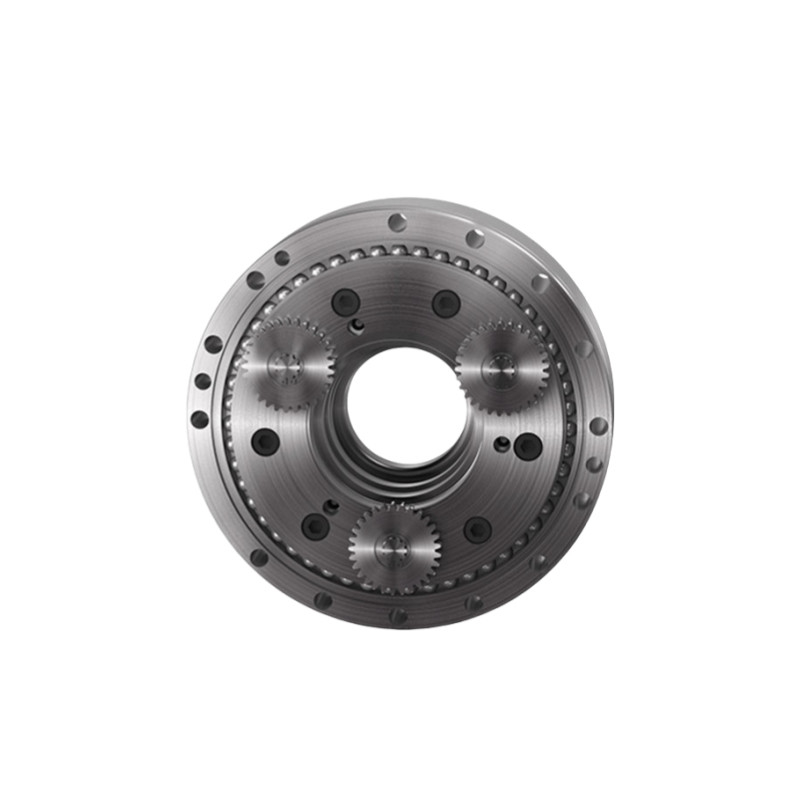

Detailed Images

Key Attributes of RV - C Series Hollow Shaft RV Reducer
Product	Hollow Shaft RV Reducer
Material	Steel, Aluminum
Torsional Rigidity	421 to 24500 Nm/arc.min.
Output speed (r/min)	5 to 60
Backlash	MAX. 1 Arc.min.
Momentary max. allowable torque	1372 to 78400 Nm
Max allowable output rotation speed	80 r/min
Model	BX10C, BX27C, BX50C, BX100, BX120C, BX200C, BX320C, BX500C
Weight	4.6 to 154kg
Warranty	1 year

Application

Multi Tasking Machine Tool
Stacker Crane
Double-column Machining Centers
Trunnion Table

Low Backlash Cycloidal RV Speed Reducer Gearbox For Robot RV-C Series 4
