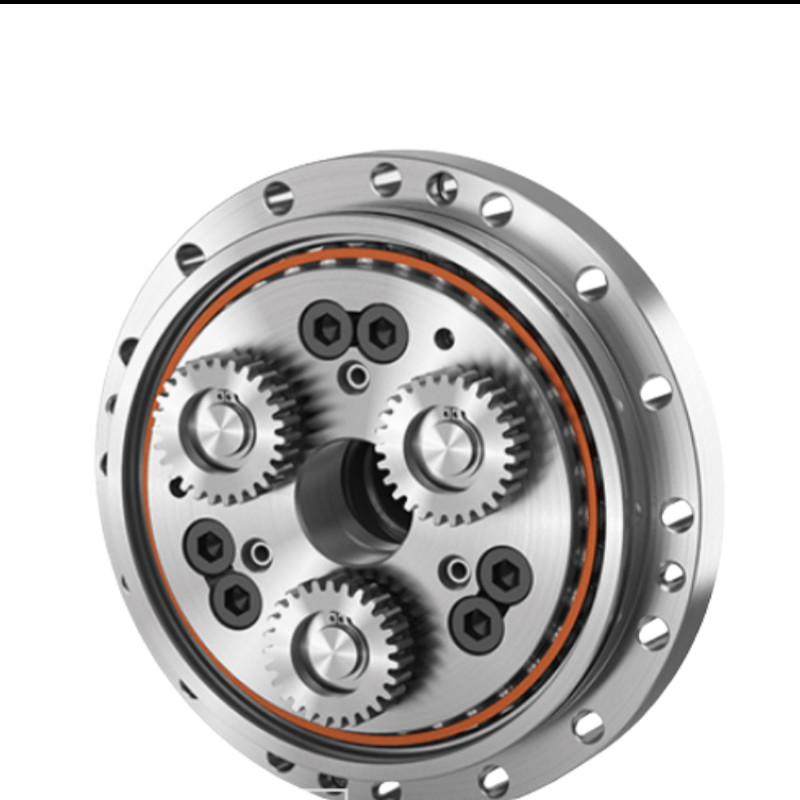

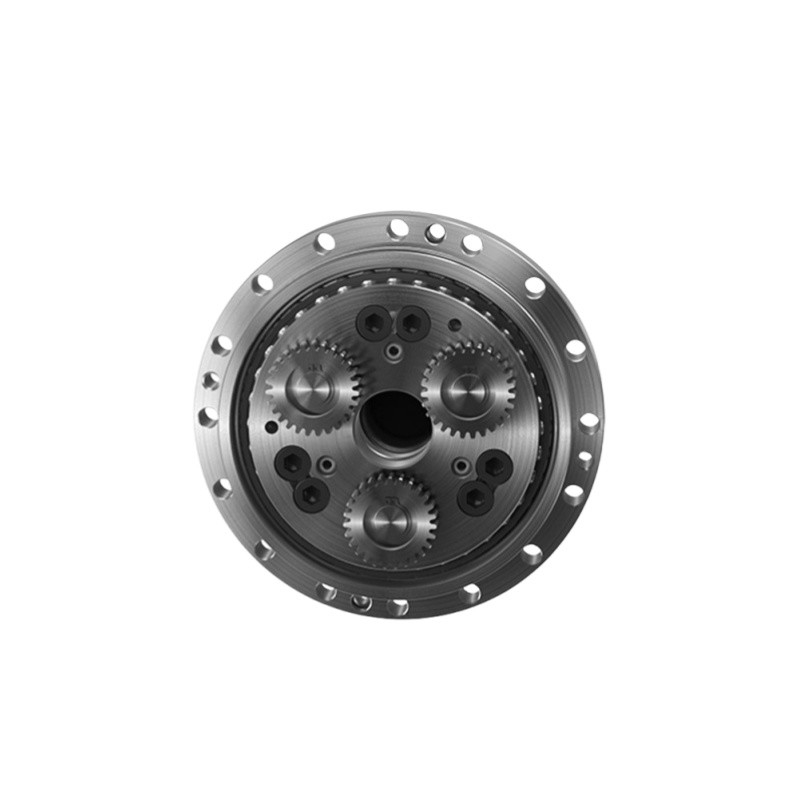

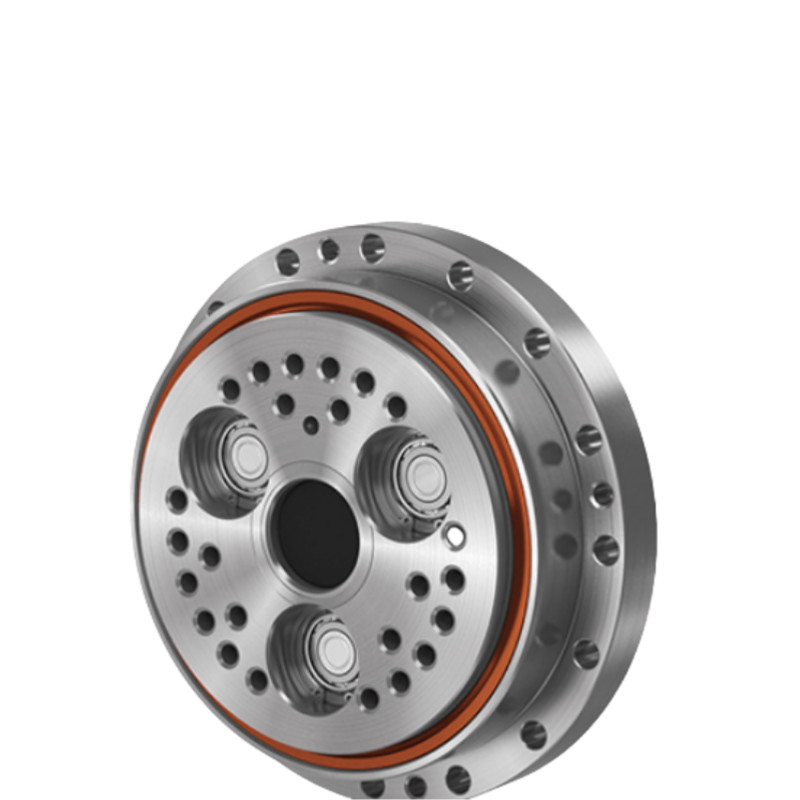

Compact Robotic Gear RV Speed Reducer Minimal Backlash

Compact robotic gear

Minimal Backlash robotic gear

Minimal Backlash RV Speed Reducer

Place of Origin:

Jiangsu, China

Brand Name:

Giant Precision

Certification:

ISO9001

Model Number:

RV - N

Request A Quote

Compact Robotic Gear RV Speed Reducer Minimal Backlash

Product Details

Features:

High Torque Capacity, Minimal Backlash, Durable Performance

Product:

Compact N Series RV Reducer

Material:

Steel, Aluminum

Lost Motion:

MAX. 1 Arc.min.

Rated Torque:

245 To 4900 Nm

Rated Output Speed:

15 R/min

Momentary Max. Allowable Torque:

1225 To 24500 Nm

Model:

BX25N, BX42N, BX80N, BX100, BX125N, BX160N, BX500N

Weight:

3.8 To 57.2 Kg

Design Life:

6000 Hours

Application:

Robotics, CNC Machining, Automated Manufacturing Systems

Warranty:

1 Year

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

To Be Negotiated

Packaging Details

Carton Box

Delivery Time

3-4 Weeks

Payment Terms

T/T

Supply Ability

20000 Sets per Month

Compact Robotic Gear RV Speed Reducer Minimal Backlash

Get Best Price

RV-C Flanged Robot Speed Reducer Gearhead Hollow Shaft

Get Best Price

Flanged Reduction Harmonic Gearhead RV Gear Reducer Solid Series

Get Best Price

RV-E Flanged Planetary Wheel Drive Reduction Gearbox Low Backlash

Get Best Price

Contact Now

Product Description

RV Reduction Gears RV - N Reducer

Name: Compact Robotic Gear RV Speed Reducer Minimal Backlash
Brand: Suzhou Giant Precision Industry Co., Ltd.
SKU: RV - N
Availability: InStock

are known for their high precision, compact size, and excellent torque transmission capabilities.

The RV reducer is used for the three joints of the leg, waist and elbow of the robot with a large torque, and the industrial robot with a large load uses RV for the first, second and third axes.

Selection Considerations for N Series RV Reducers
Torque and Speed Requirements:

Select the appropriate reduction ratio based on the required torque and speed output.
Size and Weight Constraints:

Ensure compatibility with space limitations and overall system weight.
Environmental Factors:

Consider operating conditions such as temperature range, humidity, and shock resistance.
Accuracy and Repeatability:

Evaluate the gearbox's capability to maintain precise motion control and minimal backlash over extended periods.

Specifications

Parameters table of RV - N series

Model	Standard ratio	Rated torque	Rated output speed	Design life	Allowable acceleration/ deceleration torque	Momentary max. allowable torque	Backlash	Lost motion	Allowable bending torque	Momentary max. allowable bending torque	Allowable radial load	Weight
		(Nm)	(rpm)	(h)	(Nm)	(Nm)	(arc.min.)	(arc.min.)	(Nm)	(Nm)	(N)	(Kg)
BX25N	41	245	15	6000	612	1225	1	1	784	1568	6975	3.8
	81
	107.66
	126
	137
	164.07
BX42N	41	412	15	6000	1029	2058			1660	3320	12662	6.3
	81
	105
	126
	141
	164.07
BX80N	41	784	15	6000	1960	3920			2150	4300	14163	9.3
	81
	101
	129
	141
	171
BX125N	41	1225	15	6000	3062	6125			3430	6860	19804	13.9
	81
	102.17
	121
	145.61
	161
	179.18
BX160N	41	1600	15	6000	4000	8000			4000	8000	20619	22.1
	81
	102.81
	125.21
	156
	201
BX500N	81	4900	15	6000	12250	24500			11000	22000	40486	57.2
	105
	123
	144
	159
	192.75

Key Attributes

Key Attributes of RV - N Series Compact RV Reduction Gears
Product	Hollow Shaft RV Reducer
Material	Steel, Aluminum
Torsional Rigidity	421 to 24500 Nm/arc.min.
Rated output speed	15 r/min
Backlash	MAX. 1 Arc.min.
Momentary max. allowable torque	1225 to 24500 Nm
Model	BX25N, BX42N, BX80N, BX100, BX125N, BX160N, BX500N
Weight	3.8 to 57.2kg
Design life	6000 hours
Application	Robotics, CNC machining, Automated manufacturing systems
Feature	High torque capacity, Minimal backlash, Durable performance
Warranty	1 year

Application

Trunnion Table
FMS Line

Compact Robotic Gear RV Speed Reducer Minimal Backlash 1
