Place of Origin:
Jiangsu, China
Brand Name:
Giant Precision
Certification:
ISO9001
Model Number:
RV - N

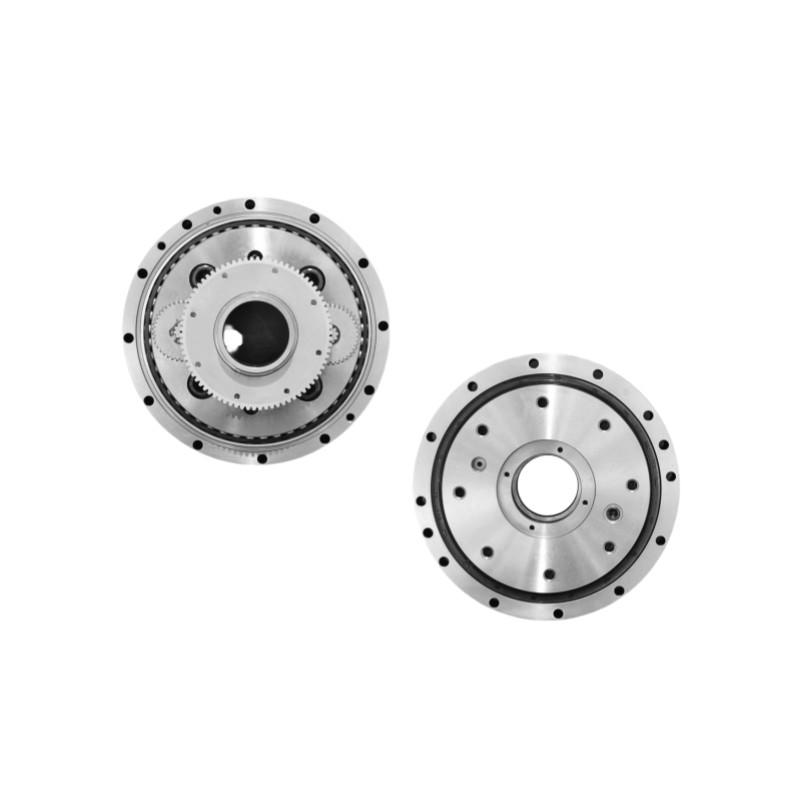

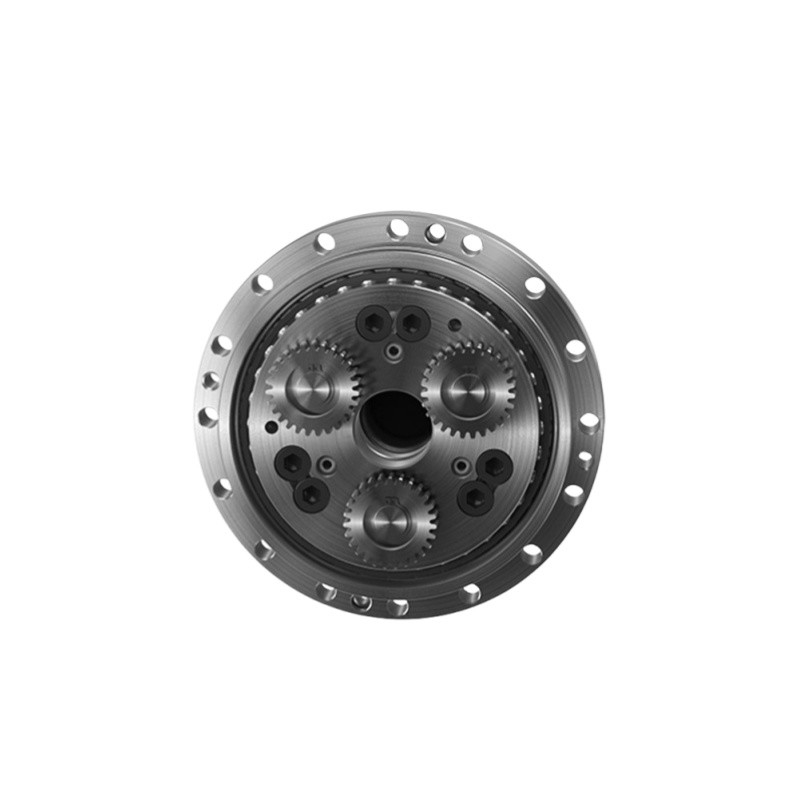

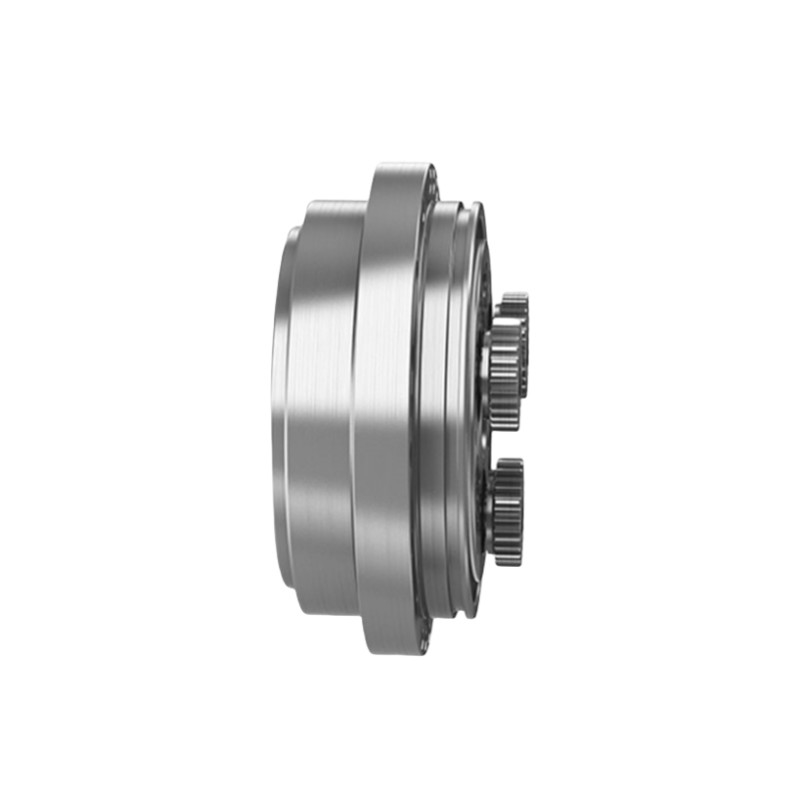

are known for their high precision, compact size, and excellent torque transmission capabilities.
The RV reducer is used for the three joints of the leg, waist and elbow of the robot with a large torque, and the industrial robot with a large load uses RV for the first, second and third axes.
Application of N Series RV Reducers
Robotics: Used in robot joints and arms for smooth and precise motion control.
Automation: Deployed in precision machinery and automated systems for positioning and actuation.
Aerospace: Applied in satellite positioning systems and mechanisms requiring reliable and precise operation.
Specifications
Parameters table of RV - N series
| Model | Standard ratio | Rated torque | Rated output speed | Design life | Allowable acceleration/ deceleration torque |
Momentary max. allowable torque |
Backlash | Lost motion | Allowable bending torque | Momentary max. allowable bending torque |
Allowable radial load | Weight |
| (Nm) | (rpm) | (h) | (Nm) | (Nm) | (arc.min.) | (arc.min.) | (Nm) | (Nm) | (N) | (Kg) | ||
| BX25N | 41 | 245 | 15 | 6000 | 612 | 1225 | 1 | 1 | 784 | 1568 | 6975 | 3.8 |
| 81 | ||||||||||||
| 107.66 | ||||||||||||
| 126 | ||||||||||||
| 137 | ||||||||||||
| 164.07 | ||||||||||||
| BX42N | 41 | 412 | 15 | 6000 | 1029 | 2058 | 1660 | 3320 | 12662 | 6.3 | ||
| 81 | ||||||||||||
| 105 | ||||||||||||
| 126 | ||||||||||||
| 141 | ||||||||||||
| 164.07 | ||||||||||||
| BX80N | 41 | 784 | 15 | 6000 | 1960 | 3920 | 2150 | 4300 | 14163 | 9.3 | ||
| 81 | ||||||||||||
| 101 | ||||||||||||
| 129 | ||||||||||||
| 141 | ||||||||||||
| 171 | ||||||||||||
| BX125N | 41 | 1225 | 15 | 6000 | 3062 | 6125 | 3430 | 6860 | 19804 | 13.9 | ||
| 81 | ||||||||||||
| 102.17 | ||||||||||||
| 121 | ||||||||||||
| 145.61 | ||||||||||||
| 161 | ||||||||||||
| 179.18 | ||||||||||||
| BX160N | 41 | 1600 | 15 | 6000 | 4000 | 8000 | 4000 | 8000 | 20619 | 22.1 | ||
| 81 | ||||||||||||
| 102.81 | ||||||||||||
| 125.21 | ||||||||||||
| 156 | ||||||||||||
| 201 | ||||||||||||
| BX500N | 81 | 4900 | 15 | 6000 | 12250 | 24500 | 11000 | 22000 | 40486 | 57.2 | ||
| 105 | ||||||||||||
| 123 | ||||||||||||
| 144 | ||||||||||||
| 159 | ||||||||||||
| 192.75 |
Key Attributes
| Key Attributes of RV - N Series Compact RV Reduction Gears | |||
| Product | Hollow Shaft RV Reducer | ||
|
Material
|
Steel, Aluminum | ||
|
Torsional Rigidity
|
421 to 24500 Nm/arc.min. | ||
| Rated output speed | 15 r/min | ||
|
Backlash
|
MAX. 1 Arc.min. |
||
|
Momentary max. allowable torque
|
1225 to 24500 Nm | ||
|
Model
|
BX25N, BX42N, BX80N, BX100, BX125N, BX160N, BX500N |
||
|
Weight
|
3.8 to 57.2kg | ||
| Design life | 6000 hours | ||
| Application | Robotics, CNC machining, Automated manufacturing systems | ||
| Feature | High torque capacity, Minimal backlash, Durable performance | ||
| Warranty | 1 year | ||
Application
